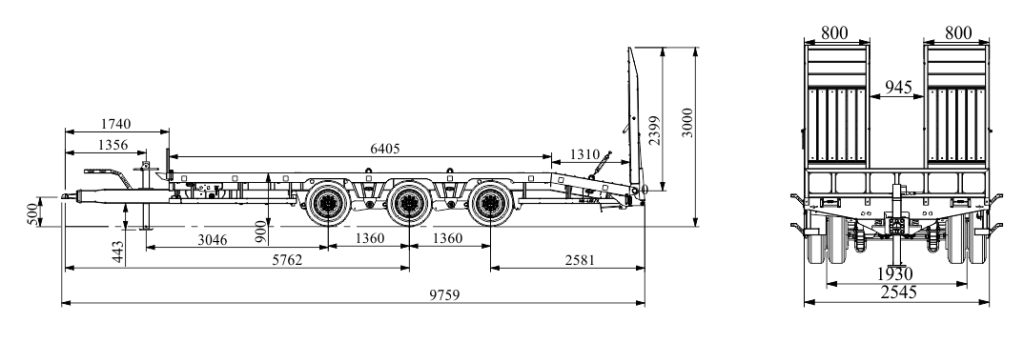

| Total Length (kg) | 9759 |
| Platform Length (kg) | 6400+1300 |
| Wheel Base (mm) | 5762 |
| Height From Ground (mm) | 900 |
| Drawbar Height (mm) | 500 |
| GWV (kg) | 35500 |
| Pay Load (kg) | 30000 |
| Drawbar Load (kg) | 1000 |
| Mass Weight (kg) | 5500 |
| Axle (mm) | 3×10 Ton Braked |
| Suspension | Parabolic Spring |
| Axle Center (mm) | 1360 |
| Brake Shoe | 330/200 |
| Brake | Hydraulic/Air Brake |
| Coupling | 50mm Adjustable Height |
| Ramps | 2400/800mm, Hydraulic Control |
| Platform Floor | Wood/Steel |
| Strap Belt Hook | 8 Pcs / 4 Pcs Right / 4 Pcs Left |
| Tyres (pieces) | 235/75 R17,5-12 Pcs |
| Landing Jack | Manuel/2 Pcs Manuel Rear |
| Light | 2 Stop Lamp, 4 Pcs LED Side Reflector Lamp |
| Reflector Warning Plate | Front and Rear Set |
