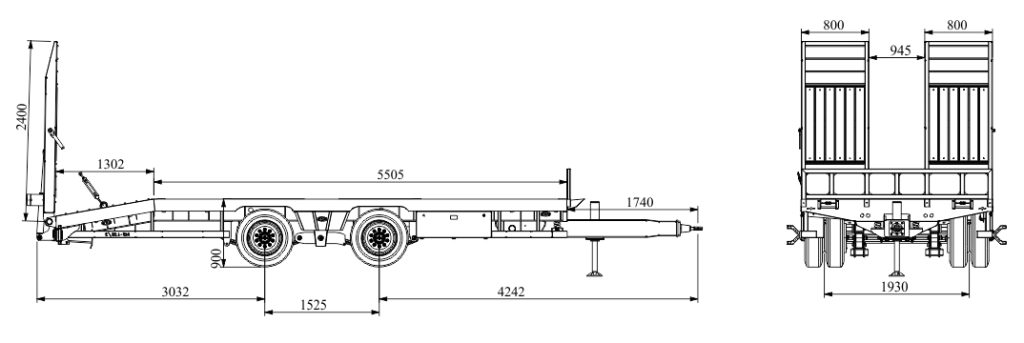

| Total Length (kg) | 8820 |
| Platform Length (kg) | 5500+1300 |
| Wheel Base (mm) | 4242 |
| Height From Ground (mm) | 900 |
| Drawbar Height (mm) | 500 |
| GWV (kg) | 18000 |
| Pay Load (kg) | 14000 |
| Drawbar Load (kg) | 3000 |
| Mass Weight (kg) | 4000 |
| Axle (mm) | 2×10 Ton Braked |
| Suspension | Parabolic Spring |
| Axle Center (mm) | 1510 |
| Brake Shoe | 330/200 |
| Brake | Hydraulic/Air Brake |
| Coupling | 50mm Adjustable Height |
| Ramps | 2400/800mm, Hydraulic Control |
| Platform Floor | Wood/Steel |
| Strap Belt Hook | 8 Pcs / 4 Pcs Right / 4 Pcs Left |
| Tyres (pieces) | 235/75 R17,5-8 Pcs |
| Landing Jack | Manuel |
| Light | 2 Stop Lamp, 3 Pcs LED Side + 2 Pcs White Reflector Lamp + 2 Pcs Triangle |
| Reflector Warning Plate | Front and Rear Set |
